Complete Product Introduction

1. Product Brief Introduction

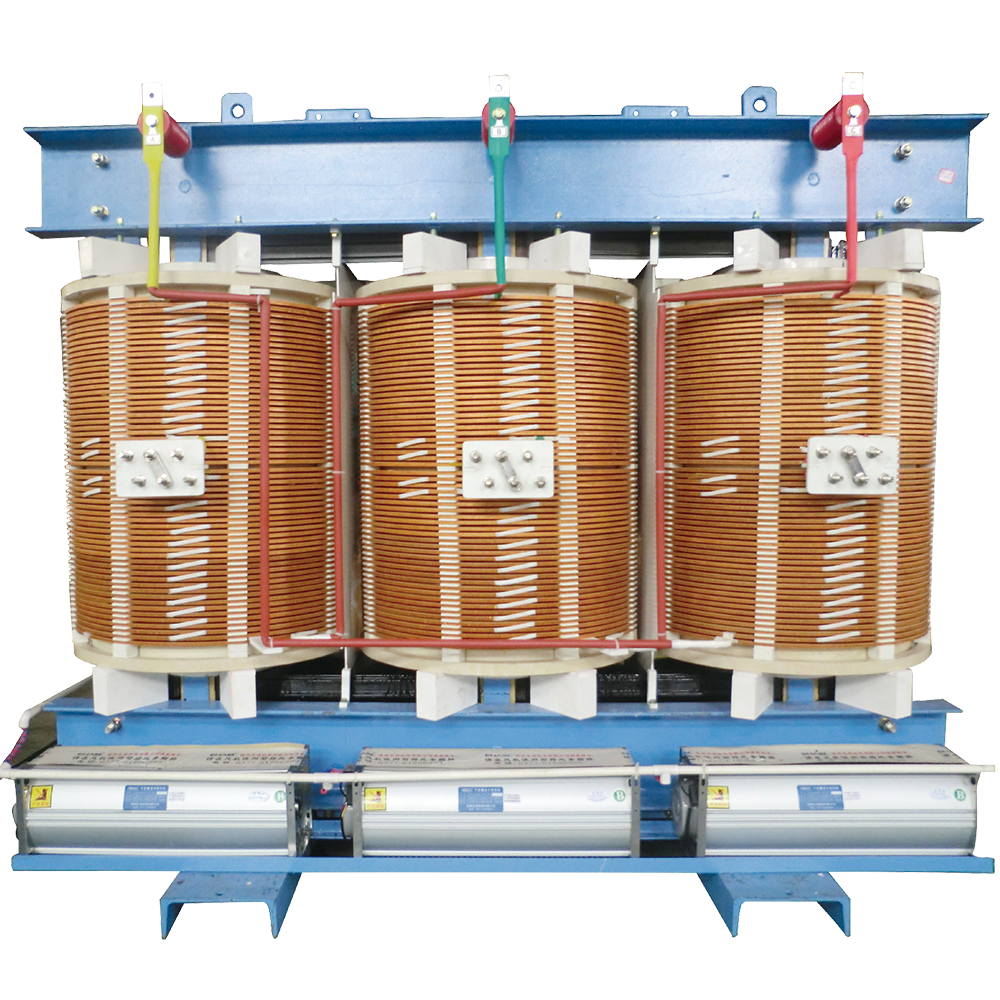

The SG(B)10 three-phase dry-type on-load voltage regulating low-voltage foil winding transformer is a high-performance dry-type transformer adopting DuPont new materials and new processes. Its insulation heat resistance grade has reached Class H, and the heat resistance grade of key insulation parts has reached Class C, with excellent safety, reliability and environmental performance.

2. Model Meaning & Explanation

The coding of the product model contains the core structural characteristics and parameter information of the transformer. The specific meaning of each part of the model is as follows:

SG(B)10 - XXX / 10
- SG: Three-phase dry-type
- (B): Low-voltage foil winding
- 10: On-load voltage regulation
- XXX: Performance code
- Rated capacity (kVA)
- 10: Voltage class (kV)

3. Executive Standards & Specifications

The design, production and inspection of the product comply with the national and industrial standards for dry-type transformers to ensure the safety and reliability of product performance:

• GB/T 1094.1-2013 Power Transformers - Part 1: General
• GB/T 1094.2-2013 Power Transformers - Part 2: Temperature Rise
• GB/T 1094.3-2017 Power Transformers - Part 3: Insulation Levels, Dielectric Tests and External Clearances in Air
• GB/T 1094.5-2008 Power Transformers - Part 5: Ability to Withstand Short Circuit
• GB 1094.11-2007 Power Transformers - Part 11: Dry-Type Transformers
• IEC 60076 Series International Standards for Power Transformers

4. Product Characteristics

4.1 Insulation Performance

Dry-type transformers have insulation heat resistance grades including Class B, F, H, C, etc. The heat resistance temperatures are 130℃, 155℃, 180℃, 220℃ respectively. This product adopts DuPont new materials and new processes, the insulation heat resistance grade of SG(B)10 dry-type transformer has reached Class H, and the heat resistance grade of key insulation parts has reached Class C.

4.2 Safety Performance

• All insulating materials are non-combustible, self-extinguishing and non-toxic, and the combustible substances are less than 10% of those of epoxy resin cast products.
• No toxic and harmful smoke is produced when burning at high temperature of 800℃ for a long time.
• It has significant advantages in occasions with high safety requirements such as power, subway, ship, chemical industry, metallurgy, and in places with high humidity and poor ventilation.

4.3 Reliability Performance

• The special coil design, process and materials make the product have excellent three-proof performance (moisture-proof, mildew-proof, anti-smog).
• It can withstand thermal shock without partial discharge and local cracking.
• The insulation system based on Nomex maintains excellent electrical and mechanical properties during the entire service life of the transformer, and Nomex products are not easy to age, shrink or resist compression.
• The elastic characteristics ensure the transformer has a compact structure and can withstand short circuits.

5. Ordering Notes

When placing an order, the following information must be provided to ensure accurate product customization and delivery:

• Product model number (SG(B)10-XXX/10)
• Rated capacity (kVA)
• High and low voltage rated voltage (kV)
• Number of phases, frequency (50Hz)
• Connection group symbol (Dyn11/Yyn0)
• Special requirements for insulation grade or installation environment
