Yongce Group Co., Ltd.
Complete Product Introduction
1. Product Brief Introduction

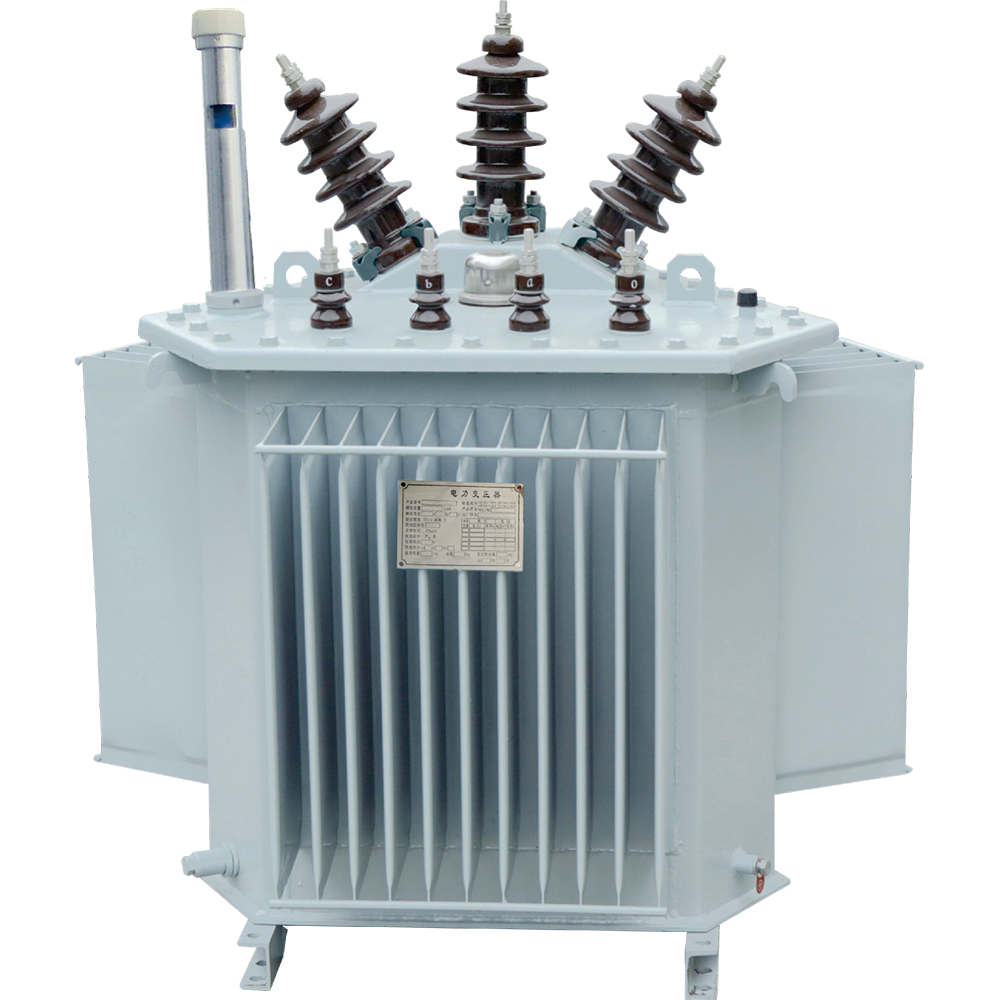

The three-dimensional core oil-immersed transformer (S13-M.R series) is a new type of high-reliability transformer product with more reasonable structure, better performance and lower production cost. This product breaks through the traditional planar structure and adopts a three-phase symmetrical three-dimensional structure. Moreover, due to the absence of air gaps in its magnetic circuit, the magnetic conduction direction of the silicon steel strip is completely consistent with the magnetic circuit direction. The three cores are arranged in an equilateral triangle three-dimensional form, and the three magnetic circuits are of the same length and the shortest. It also has the characteristics of no waste in the processing and assembly process; therefore, it is an energy-efficient transformer with lower noise, more compact structure and using traditional materials. Its outstanding performance in reducing loss and saving materials is fully in line with China's energy conservation policy.

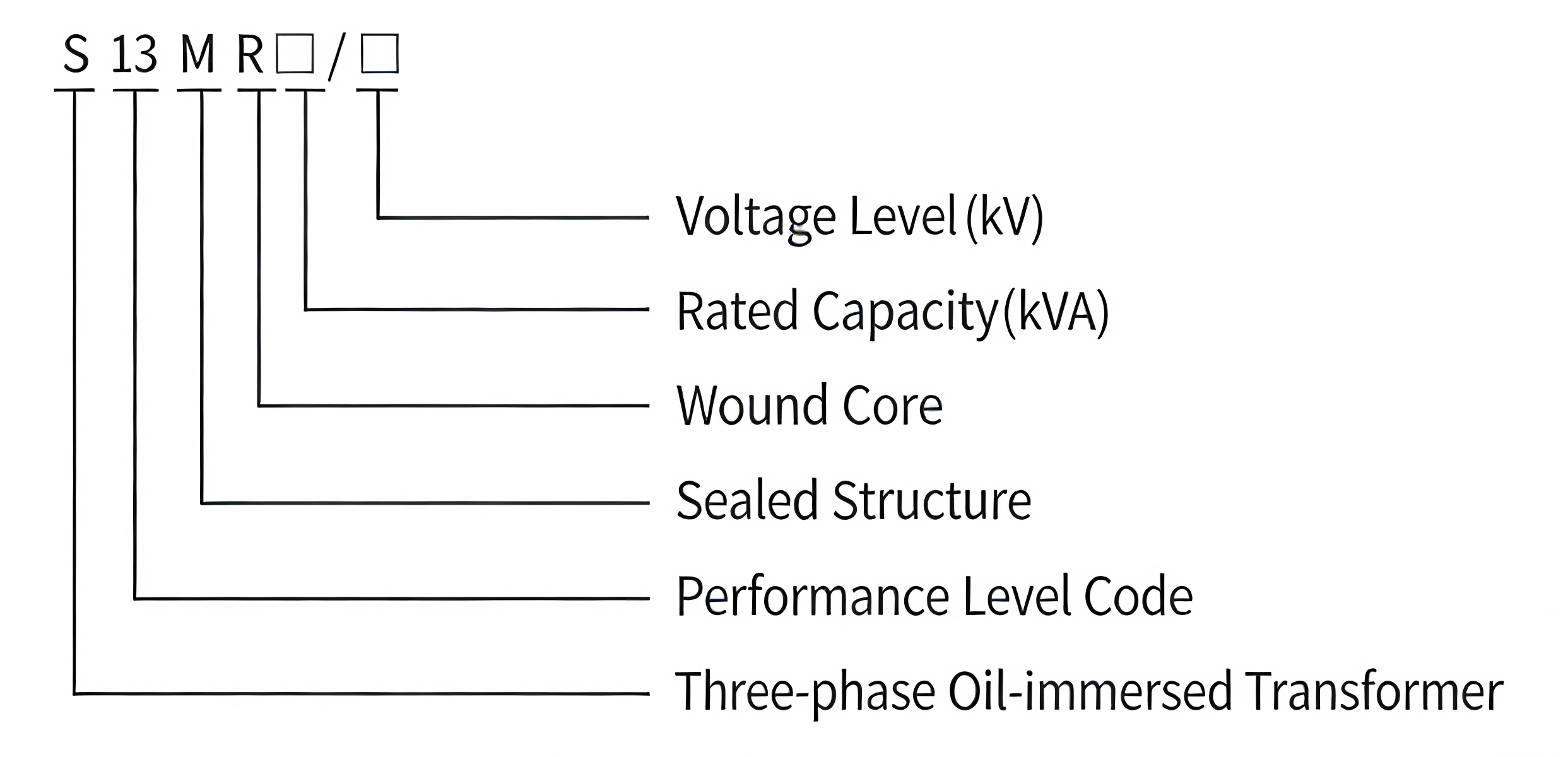

2. Model Meaning & Explanation
The coding of the product model contains the core structural characteristics and parameter information of the transformer. The specific meaning of each part of the S13-M.R model is as follows:
- S: Three-phase oil-immersed transformer
- 13: Performance level code
- M: Sealed structure
- R: Wound core
- □: Rated capacity (kVA)
- /□: Voltage level (kV)
3. Executive Standards
- GB1094.1-2-2013 Power Transformers
- GB1094.3-2003 Power Transformers
- GB/T1094.4-2005 Power Transformers
- GB1094.5-2008 Power Transformers
- GB/T6451-2008 Technical Parameters and Requirements for Three-phase Oil-immersed Power Transformers
- International Standard IEC76
- GB/T25289-2010 Technical Parameters and Requirements for 20kV Oil-immersed Power Transformers
4. Structural Characteristics
- Energy saving, consumption reduction and noise reduction;
- Material saving and cost reduction;
- Enhanced three-phase balance and short-circuit resistance;
- Stable quality and improved production efficiency;
- Anti-theft, small floor area and beautiful appearance;
- Good economy and high cost performance.
5. Main Technical Parameters
|
Rated Capacity (kVA) |
Voltage Combination | Connection Group Symbol |
No-load Loss (W) |
Load Loss (W) |
Impedance Voltage (%) |
No-load Current (%) |
||
|---|---|---|---|---|---|---|---|---|
| High Voltage (kV) | Tap (%) | Low Voltage (kV) | ||||||
| 30 | 6, 6.3, 10, 10.5, 11 | ±5% or ±2×2.5 | 0.4 | Dyn11, Yzn11, Yyn0 | 80 | 630/600 | 4 | 0.3 |
| 50 | 100 | 910/600 | 4 | 0.24 | ||||
| 80 | 130 | 1310/1250 | 4 | 0.22 | ||||
| 100 | 150 | 1580/1500 | 4 | 0.21 | ||||
| 160 | 200 | 2310/2200 | 4 | 0.19 | ||||
| 200 | 240 | 2730/2600 | 4 | 0.18 | ||||
| 250 | 290 | 3200/3050 | 4 | 0.17 | ||||
| 315 | 340 | 3830/3650 | 4 | 0.16 | ||||
| 400 | 410 | 4520/4300 | 4 | 0.16 | ||||
| 500 | 480 | 5410/5100 | 4 | 0.16 | ||||
| 630 | 570 | 6200 | 4.5 | 0.15 | ||||
| 800 | 700 | 7500 | 4.5 | 0.15 | ||||
| 1000 | 830 | 10300 | 4.5 | 0.14 | ||||
| 1250 | 970 | 12000 | 4.5 | 0.13 | ||||
| 1600 | 1170 | 14500 | 4.5 | 0.12 | ||||
|
Notes: 1. The load loss values below the slash in the table are applicable to products with Dyn11 connection group. 2. For technical parameters, overall dimensions and weight data of 10kV distribution transformers with larger capacity, please consult our company. 3. Transformers with various voltage combinations, short-circuit impedances and connection modes can be provided according to user requirements. 4. The weight and overall dimension data in the table are for reference only. Subject to change without prior notice. |
||||||||
