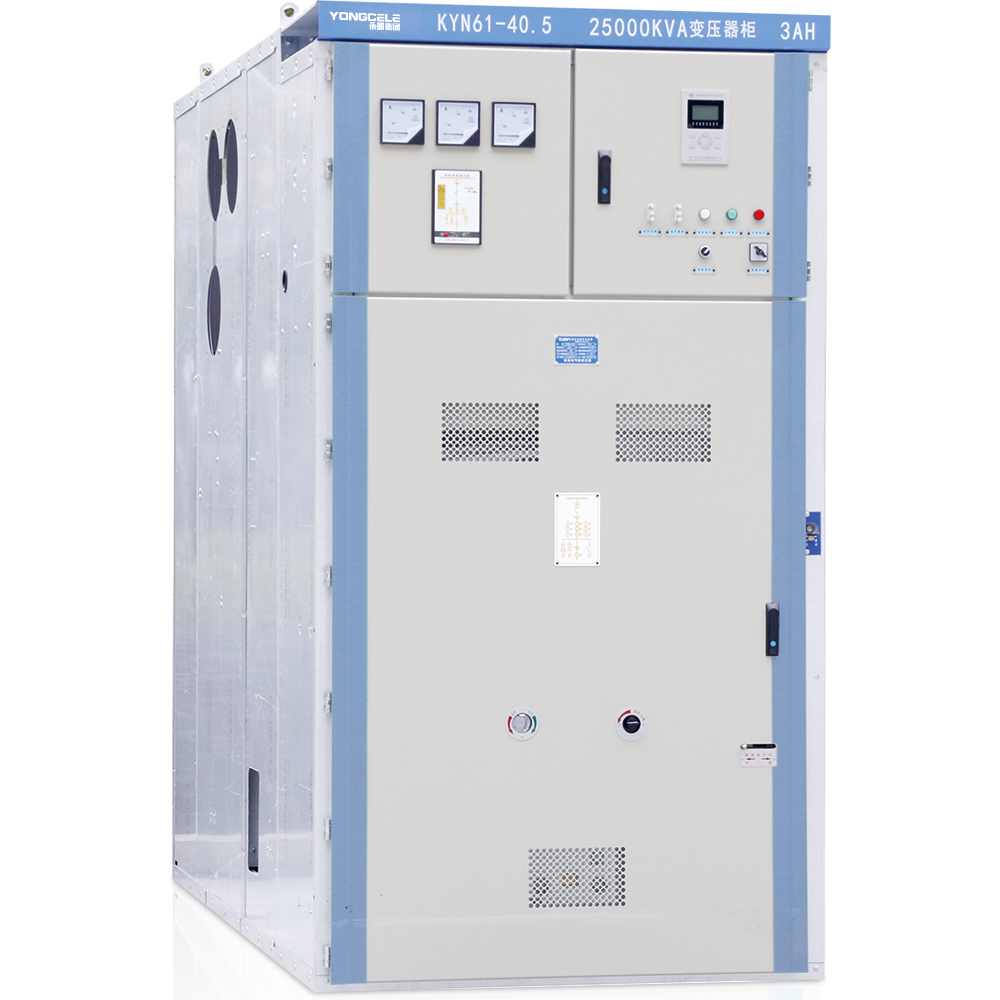

KYN1-40.5(Z) Armored Removable AC Metal-Clad Switchgear Product Introduction
1. Product Brief Introduction
The KYN1-40.5(Z) type armored removable AC metal-clad switchgear (hereinafter referred to as switchgear) is an indoor switchgear assembly with three-phase AC 50Hz and rated voltage of 40.5kV. It is used for receiving and distributing electric energy in power plants and industrial and mining enterprises, and plays the roles of control, protection and monitoring of power circuits. It can also be used in places requiring frequent operation.
The switchgear complies with the standards of GB/T11022-1999, GB3906-1991 and DL404-1997.

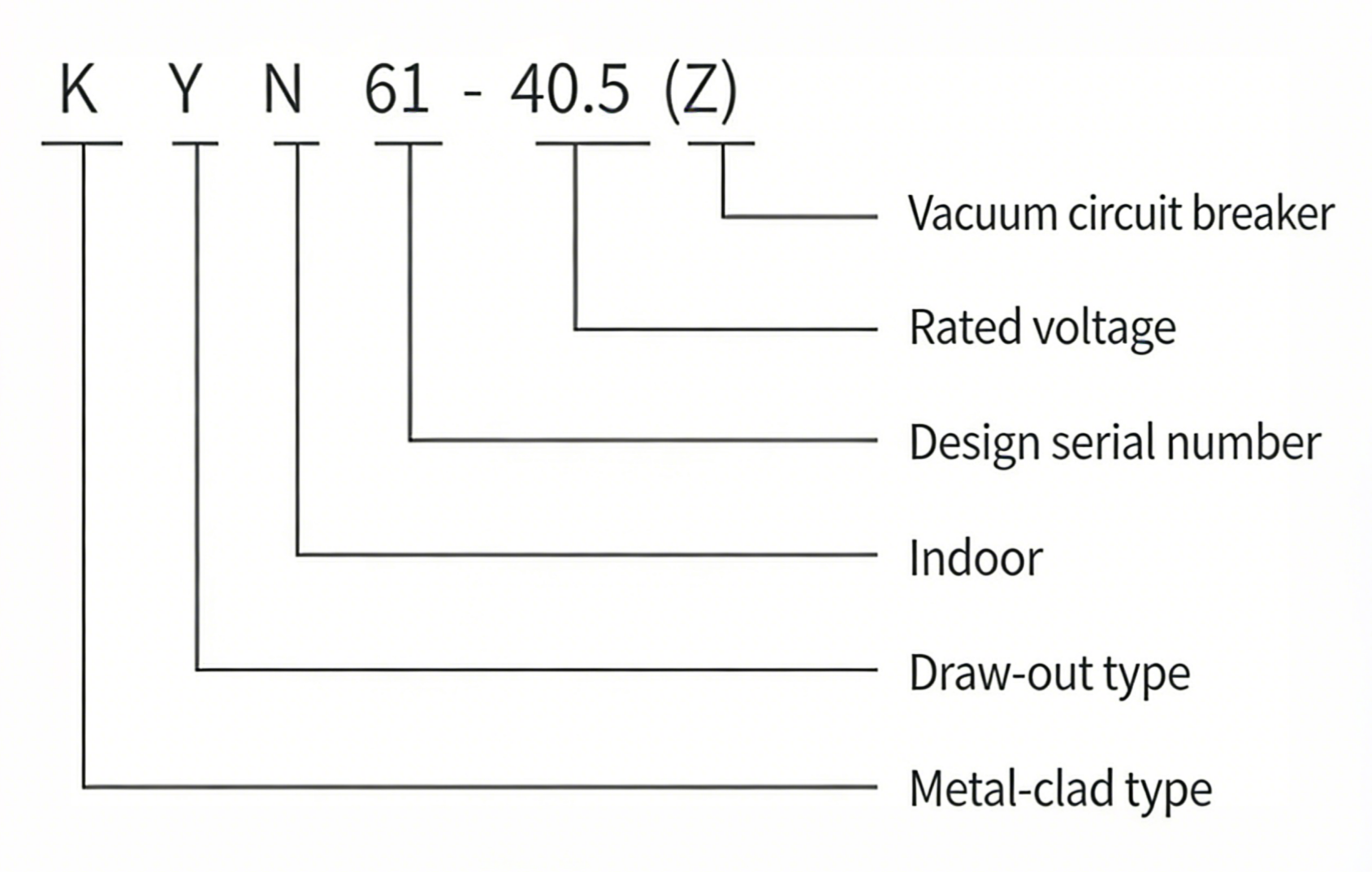

2. Model Meaning & Explanation
The coding of the product model contains the core structural characteristics and parameter information of the switchgear. The specific meaning of each part of the model is as follows:
- K: Metal-clad type
- Y: Removable type
- N: Indoor type
- 1: Rated serial number
- 40.5: Rated voltage (kV)
- (Z): Vacuum circuit breaker
3. Operating Conditions
- Ambient air temperature: maximum +40℃, minimum -15℃;
- Relative humidity: average monthly relative humidity ≤ 95%, average daily relative humidity ≤ 90%;
- Average monthly water vapor pressure ≤ 2.2kPa; average daily water vapor pressure ≤ 1.8kPa;
- Altitude: below 1000m;
- Seismic intensity: not exceeding 8 degrees;
- Ambient air shall be free from obvious pollution such as corrosive or flammable gases, water vapor, etc.;
- No explosive hazard places;
- When used under conditions beyond the normal conditions specified in GB3906, it shall be negotiated with the manufacturer by the user.
4. Structural Characteristics
- The cabinet structure adopts an assembled type, and the circuit breaker adopts a handcart floor type structure;
- The cabinet is equipped with a new type of composite insulation vacuum circuit breaker, which has the characteristics of good interchangeability and simple maintenance;
- The handcart frame is equipped with a lead screw propulsion mechanism, which can easily move the handcart and prevent damage to the propulsion mechanism caused by misoperation;
- All operations can be carried out when the door is closed;
- There is a forced mechanical interlocking mode between the main switch, handcart and switchgear door to meet the "five-proof" function;
- The quick-opening type bus room can connect multiple bus bars;
- The quick grounding switch is used for grounding of incoming and outgoing circuits;
- The protection grade of the outer shell is IP3X, and the protection grade is IP2X when the handcart room door is open;
- The product complies with GB3906-1991, DL404-1997 and refers to the IEC-298 standard.
5. Main Technical Parameters of Vacuum Circuit Breaker
| Name | Unit | Value |
|---|---|---|
| Rated Voltage | kV | 40.5 |
| Rated Frequency | Hz | 50 |
| Rated Power Frequency Withstand Voltage | kV | 95/1min |
| Rated Lightning Impulse Withstand Voltage | kV | 185 |
| Rated Current | A | 1250,1600,2000 |
| Rated Short-time Withstand Current | kA | 20,25,31.5 |
| Rated Making Current | kA | 20,25,31.5 |
| Rated Peak Withstand Current | kA | 50,63,80 |
| Rated Short-circuit Duration | ms | 4 |
| Opening Time | ms | 30 ≤ t ≤ 60 |
| Closing Time | ms | 50 ≤ t ≤ 100 |
| Rated Short-circuit Breaking Current Times | times | 20 |
| Mechanical Life | times | 10000 |
| Protection Grade | - | IP43 |
6. Main Technical Parameters of Vacuum Switchgear
| Name | Unit | Value |
|---|---|---|
| Rated Voltage | kV | 40.5 |
| Rated Current | A | 1250,1600,2000 |
| Rated Frequency | Hz | 50 |
| Rated Short-time Withstand Current | kA | 20,25,31.5 |
| Rated Peak Withstand Current | kA | 50,63,80 |
| Rated Power Frequency Withstand Voltage | kV | 95/1min |
| Rated Lightning Impulse Withstand Voltage | kV | 185 |
| Rated Short-circuit Duration | s | 4 |
| Protection Grade | - | IP3X |
7. Overall Dimensions (mm)
| Dimension Type | Description | Value |
|---|---|---|
| Height | - | 2650 |
| Width | Rated current ≤ 1600A | 1400 |
| Depth | Cable inlet/outlet | 2870 |
| Overhead inlet/outlet | 2950 |
8. Main Technical Parameters of Spring Operating Mechanism
| Name | Unit | Value |
|---|---|---|
| Rated Operating Voltage | V | Opening coil: DC220/110, AC220/110 |
| Closing coil: DC220/110, AC220/110 | ||
| Rated Operating Current | A | Opening coil: 0.96(220V),1.05(110V) |
| Closing coil: 0.96(220V),1.05(110V) | ||
| Stored Energy Motor Power | W | 230 |
| Stored Energy Motor Rated Voltage | V | DC220/110, AC220/110 |
| Stored Energy Time | S | ≤ 12 |

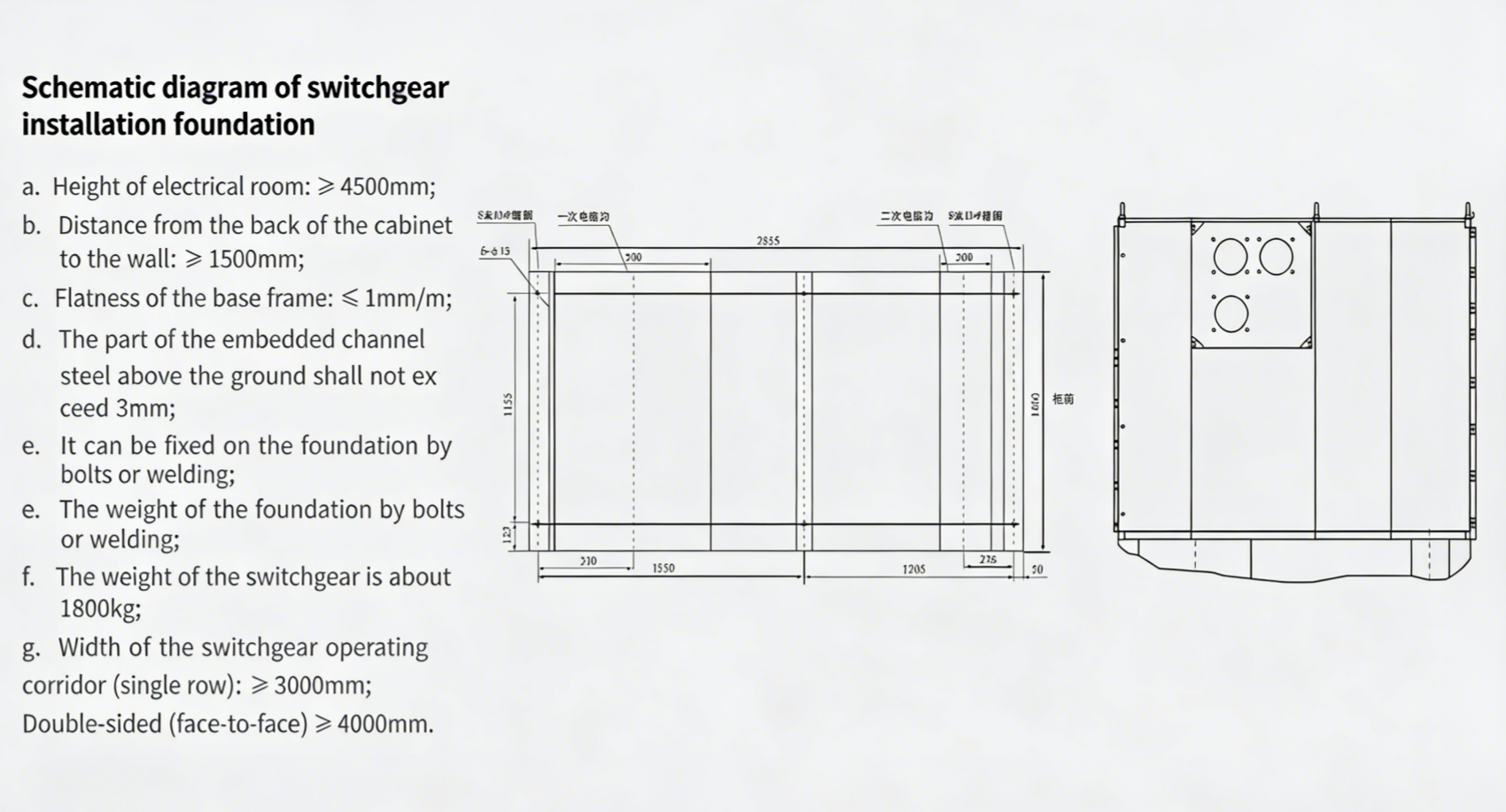

9. Installation of Switchgear
a. Height of switchgear foundation: ≥ 450mm;
b. Channel width: ≥ 1500mm;
c. Thickness of foundation concrete: ≥ 150mm;
d. The flatness error of the foundation surface: ≤ 2mm;
e. The switchgear is fixed on the foundation with expansion bolts;
f. The weight of a single switchgear is about 1800kg;
g. The distance between the front operation surface of the switchgear (single row): ≥ 3000mm;
h. Double row (back to back): ≥ 4000mm.
Note: Replace the above image path with the actual installation drawing path

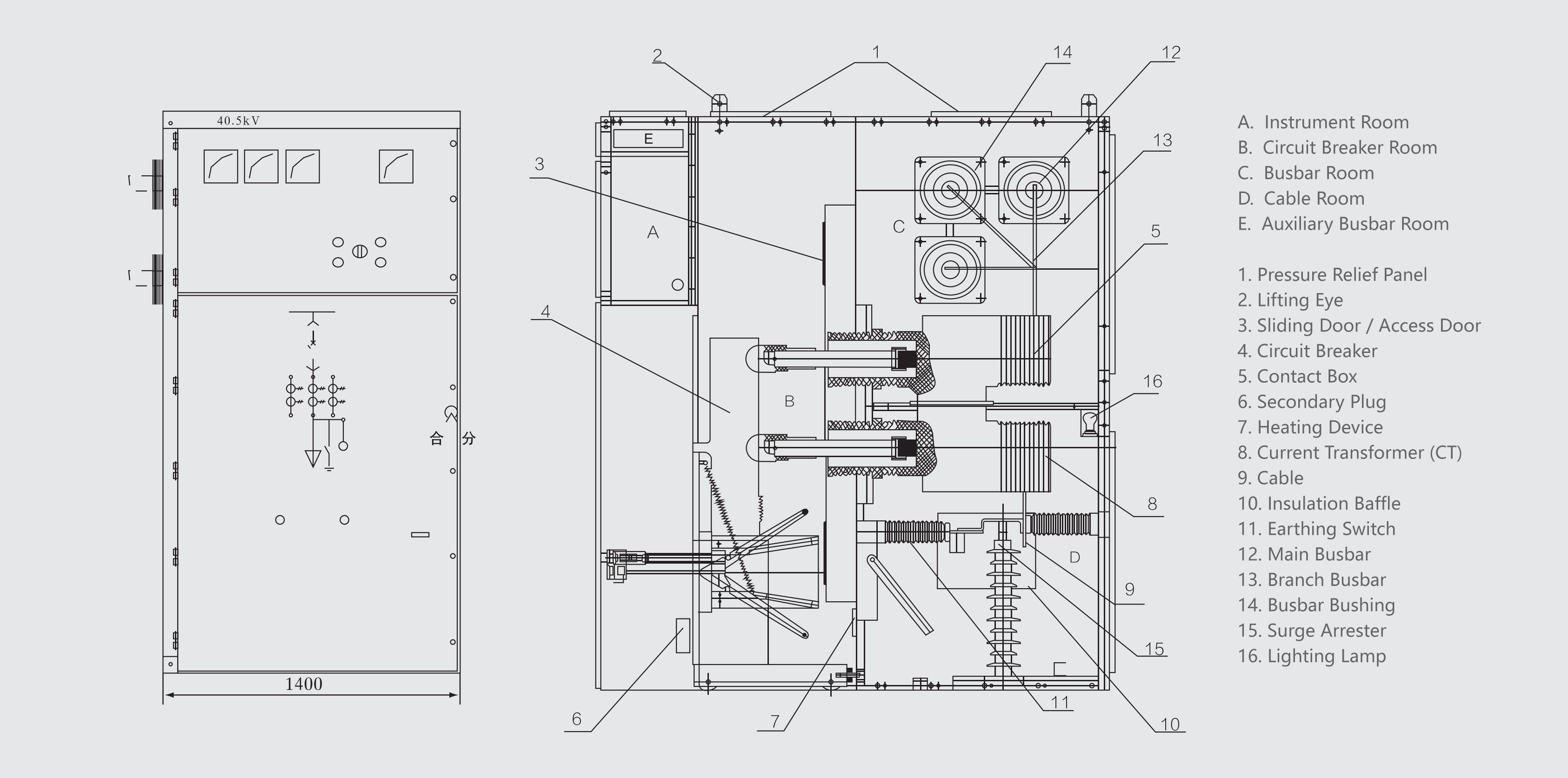

10. Equipment Structure Drawing
Note: Replace the above image path with the actual structure drawing path
