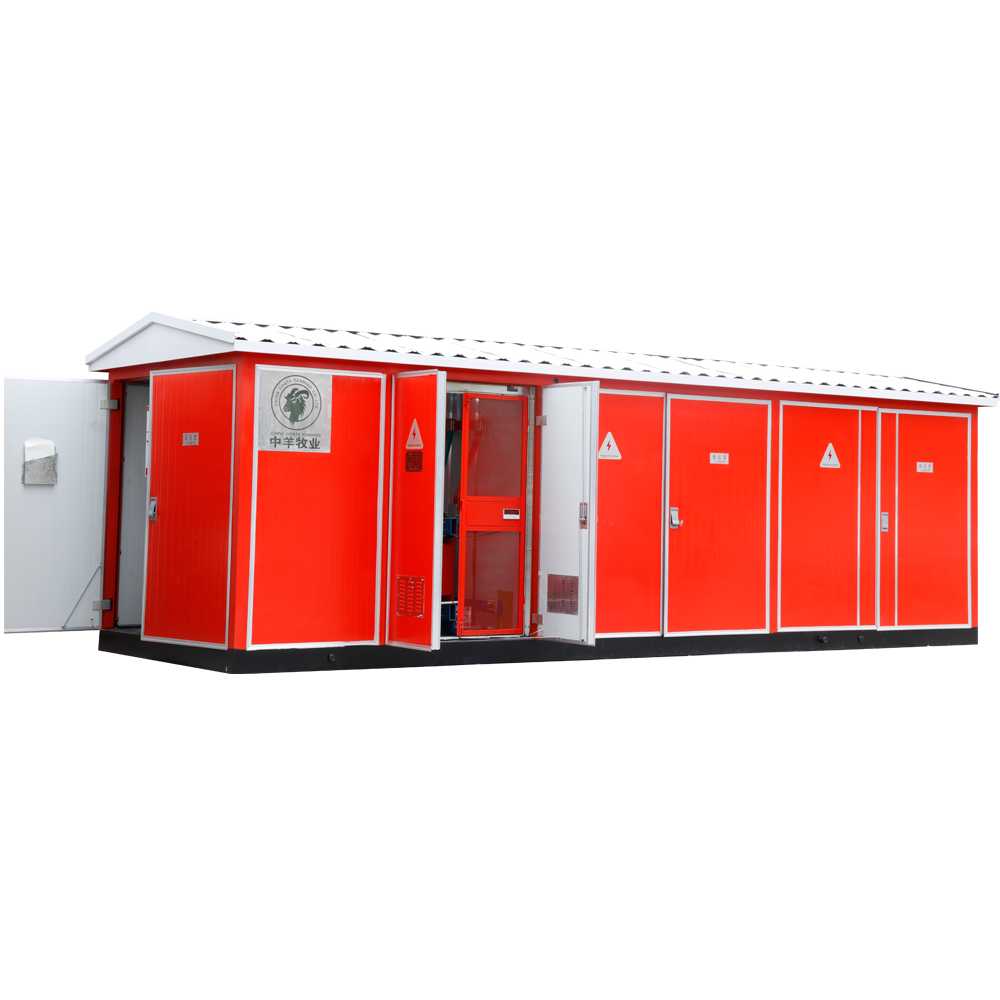

Industrial Substation Product Introduction

1. Product Brief Introduction

The industrial substation is a complete set of power distribution equipment designed for industrial production scenarios, integrating transformers, high and low voltage switchgear, protection and monitoring devices, reactive power compensation components, etc. It realizes voltage reduction, distribution, protection and energy-saving control of electric energy, and has the characteristics of compactness, intelligence and high reliability. It adapts to the load characteristics and usage environment of industrial plants, and can be directly installed in industrial production workshops, factory area power distribution rooms, outdoor industrial operation sites, etc. It replaces traditional civil-built substations, greatly shortens the construction period and saves floor space.

2. Scope of Application

• Manufacturing industry: power distribution in industrial production plants and workshops such as machinery processing, automobile manufacturing, electronic and electrical appliances, metallurgy, chemical industry, textile, building materials, etc.
• Industrial parks: centralized power distribution in industrial parks, economic development zones, industrial zones and enterprise-specific power distribution.
• Heavy industry: power supply for power distribution in mining areas, ports, docks, engineering machinery operation areas.
• Other industrial scenarios: power distribution needs of industrial warehousing centers, cold chain industrial parks, and industrial supporting facilities.
• Voltage level configuration: industrial low-voltage power distribution systems with 10kV/35kV incoming lines and 0.4kV outgoing lines, covering industrial load power supply from small and medium power to medium and large power.

3. Model Definition (Taking 10kV Prefabricated Industrial Substation as an Example, Industry Universal Compilation Rules)

The model number of industrial substation is usually compiled by prefabricated substation universal code + voltage level + transformer capacity + structure/characteristic code. The core model such as YBM-12/0.4-630, the definition of each part is as follows:

• YBM: Prefabricated substation (general code for prefabricated substation), Y - Prefabricated, B - Substation, M - Sealed type (commonly used in industry, suitable for multi-dust/humid environment); if it is outdoor explosion-proof type, it is marked as YBM-F, and indoor compact type is marked as YBM-N
• 12/0.4: Rated voltage, 12kV (10kV system universal) on high voltage side, 0.4kV on low voltage side
• 630: Main transformer rated capacity, unit kVA, which can be configured as 200/315/400/800/1000kVA according to industrial load requirements
• Extended code: such as G - Outdoor type, Z - Intelligent type, K - Mining industry type, customized for special industrial scenarios

4. Working Conditions

4.1 Environmental Conditions

• Ambient temperature: -25℃~+40℃ (conventional industrial type); explosion-proof/high cold type can be customized -40℃~+50℃
• Relative humidity: ≤90% (at 25℃), no condensation (anti-condensation device can be added for industrial humid environment)
• Altitude: ≤1000m; need to be customized for sea level >1000m (customized for plateau industrial scenes)
• Environmental requirements: no strong corrosive gas, no severe vibration, no large amount of dust/water mist (anti-corrosion type is required for corrosive industrial scenes such as metallurgy/chemical industry)

4.2 Electrical Working Conditions

• Power frequency: 50Hz±2Hz
• Voltage fluctuation: high voltage side rated voltage ±10%, low voltage side rated voltage ±7%
• Load characteristics: adapt to industrial inductive/capacitive mixed load, unbalanced load (such as machine tool, motor load)
• Installation method: indoor floor/outdoor floor (concrete foundation), installation site flatness ≤5mm/m, away from industrial strong interference sources (such as large motor, welding machine)

5. Main Technical Parameters

5.1 High Voltage Side (10kV/35kV)

• Rated Voltage: 12kV (10kV system), 35kV
• Rated Current: 630A/1250A
• Rated Short-Circuit Breaking Current: 12.5kA/16kA/20kA
• Grounding Mode: Neutral ungrounded / grounded via arc suppression coil (adapt to industrial power grid)
• Switch Type: Vacuum circuit breaker / load switch-fuse combination (vacuum circuit breaker commonly used in industry, strong breaking capacity)
• Protection Configuration: Five-prevention interlock, overvoltage/undervoltage protection

5.2 Transformer Part

• Type: Oil-immersed (outdoor high-power industry) / Dry-type (indoor/explosion-proof industrial scene), SCB14/SCB15 dry-type transformer (energy-saving type, mainstream in industry), S13/S14 oil-immersed transformer
• Rated Capacity: 200kVA-2500kVA (200/315/400/630/800kVA commonly used in industry)
• Impedance Voltage: 4%~6% (10kV side)
• Connection Group: Dyn11 (industrial standard, adapt to unbalanced load)
• Insulation Level: Dry-type F/H level, Oil-immersed A level
• Cooling Method: AN/AF (dry-type), ONAN/ONAF (oil-immersed)

5.3 Low Voltage Side (0.4kV)

• Rated Voltage: 400V/230V (line voltage/phase voltage)
• Rated Current: 630A/1000A/1250A/2000A
• Rated Short-Circuit Breaking Capacity: 30kA/50kA/80kA
• Reactive Power Compensation: Compensation capacity 10kvar-100kvar, compensation method static/dynamic (SVG), power factor compensated to ≥0.95 (meet industrial power requirements)
• Outgoing Circuits: 4-16 circuits (customizable according to industrial load branch requirements)

5.4 Intelligent Parameters (Industrial Intelligent Standard Configuration)

• Monitoring Function: Real-time monitoring of current, voltage, power, electric energy, temperature
• Protection Function: Overcurrent, quick break, zero sequence protection, over-temperature protection, undervoltage release (adapt to industrial fault load protection)
• Communication Function: RS485/Modbus/Internet of Things module, support remote monitoring of industrial power distribution system

6. Performance Characteristics

• Integrated assembly, easy installation: All components are pre-assembled and debugged in the factory, on-site only need to complete foundation pouring and incoming/outgoing line connection, installation period is short (3-7 days), greatly reducing the construction period and cost of industrial project supporting engineering.
• High reliability, adapt to industrial load: Core components adopt industrial-grade energy-saving products, switchgear has strong breaking capacity, protection and monitoring devices are fully configured, can withstand frequent fluctuation and impact of industrial load, low failure rate, meet the continuous power supply demand of industrial production.
• Compact design, save floor space: Integrated box structure, volume is only 1/5-1/3 of traditional civil-built substation, can be directly arranged in industrial workshop and factory area space, greatly save industrial land, adapt to the compact layout requirements of industrial factory area.
• Energy saving and consumption reduction, meet industrial power standards: Equipped with high-efficiency energy-saving transformer, standard reactive power compensation device, power factor compensated to more than 0.95, reduce line loss and transformer loss, and meet the energy-saving assessment requirements of industrial power at the same time.
• Strong environmental adaptability, high customization degree: Can be customized into explosion-proof, dust-proof, high cold, outdoor versions according to different industrial scenarios, adapt to the special requirements of different industrial environments such as metallurgy, chemical industry, mining, machinery processing, etc.
• Intelligent management, convenient operation and maintenance: Standard intelligent monitoring and protection system, support on-site/remote monitoring of equipment operation status, real-time fault alarm, reduce manual inspection cost, adapt to the intelligent operation and maintenance needs of industrial factory area.
• Complete safety protection, meet industrial specifications: The box body has anti-electric shock, waterproof, external impact protection, high voltage side has five-prevention interlock, low voltage side has leakage protection, all designs comply with national industrial power distribution equipment safety specifications.
