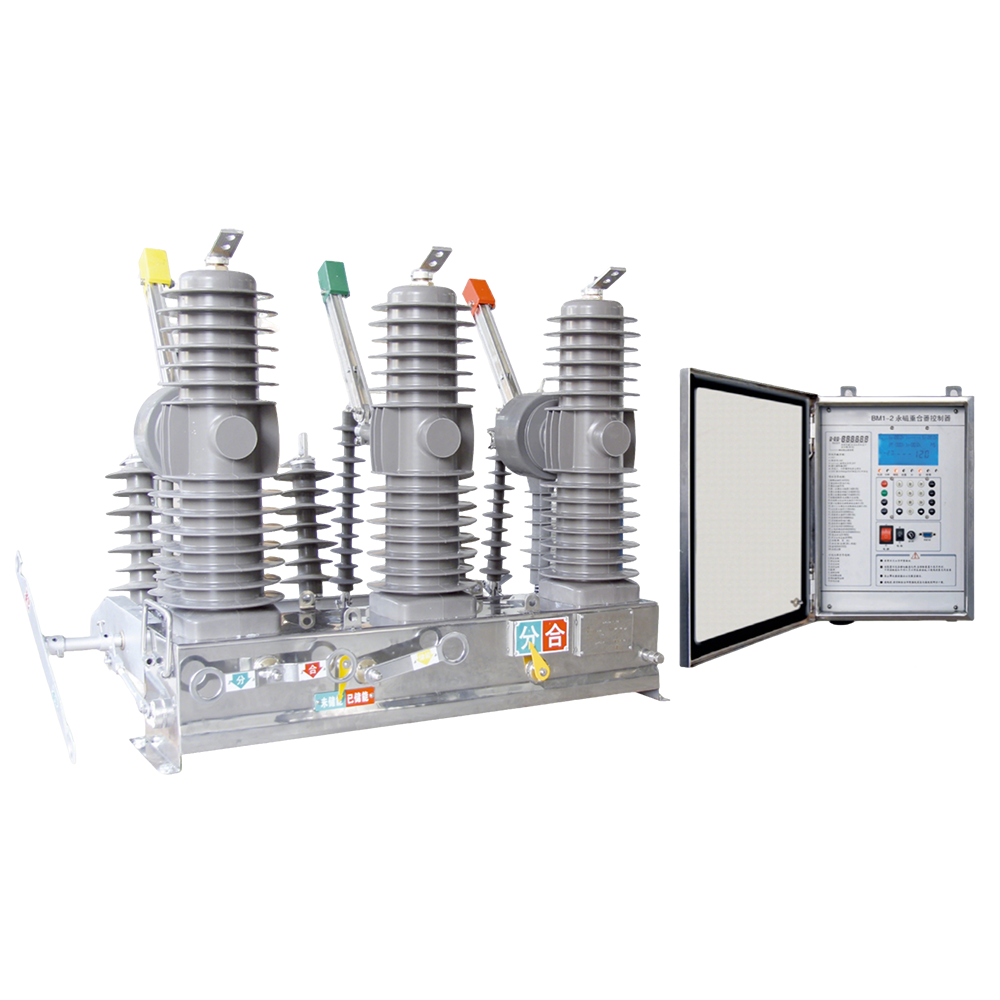

ZW32-24FG Outdoor High-Voltage Vacuum Circuit Breaker Product Introduction

1. Product Brief Introduction

The ZW32-24FG series outdoor high-voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker) is an outdoor switchgear for three-phase AC 50Hz with a rated voltage of 24kV. It is suitable for switching various types of properties of load current and frequent operation occasions, and is applicable to power supply and distribution equipment and construction of urban network, rural network, mine, railway and other places.

This product is successfully developed based on absorbing foreign advanced technology, relying on domestic raw materials and craftsmanship, and adapting to China's national conditions. Compared with similar international products, it has the advantages of miniaturization, maintenance-free, intelligentization, etc. At the same time, the product is pollution-free to the surrounding environment and is a green and environmentally friendly product.

In recent years, with the continuous expansion of China's urban power grid and the rapid growth of power load, the original 10kV voltage level distribution network has exposed problems such as high power supply voltage, high line loss, and difficulty in meeting the voltage quality requirements due to the characteristics of long power supply lines and large line capacity in rural power grids. Therefore, it is imperative to adopt 24kV voltage level power supply to increase power supply capacity, ensure voltage quality, reduce power grid energy loss, and save power grid construction costs.

The circuit breaker complies with GB1984-2003 "High-Voltage AC Circuit Breakers", DL/T402-2007 "Technical Conditions for Ordering High-Voltage Circuit Breakers" and DL/T403-200012V ~ 40.5kV "Technical Standards for Ordering High-Voltage Vacuum Circuit Breakers".

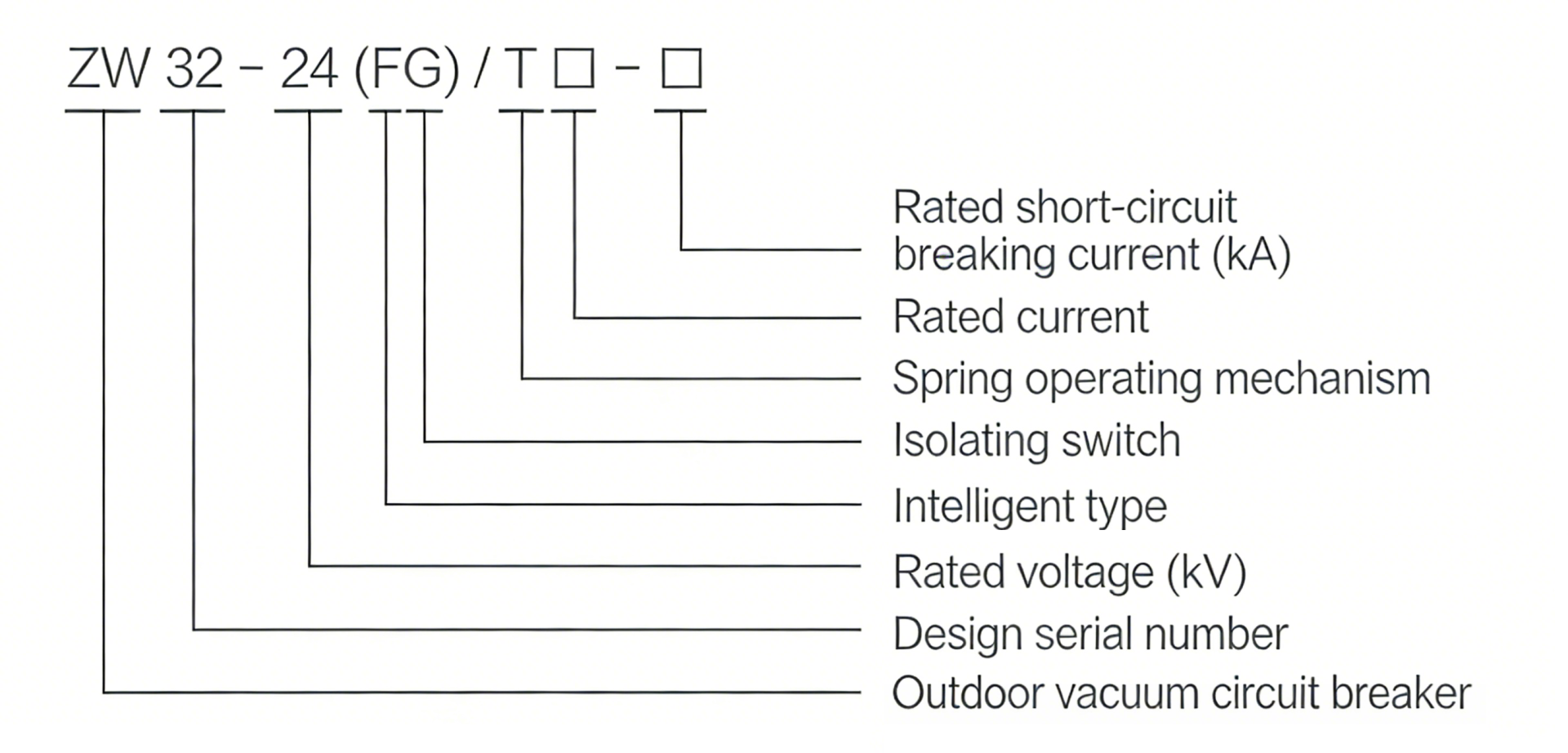

2. Model Meaning & Explanation

The coding of the product model contains the core structural characteristics and parameter information of the circuit breaker. The specific meaning of each part of the model is as follows:

ZW32 - 24 (FG)/□ / □ - □

3. Normal Operating Environment

• Ambient temperature: upper limit +40℃, lower limit -40℃; Air relative humidity: daily average value not more than 95%, monthly average value not more than 90%;
• Altitude: ≤ 3000m;
• Air pressure: not exceeding 700Pa (equivalent to wind speed 34m/s);
• Pollution grade: Grade IV (creepage ratio ≥ 31mm/kV);
• Ice thickness: ≤ 10mm;
• Installation site: no fire, explosion hazard, serious pollution, chemical corrosion and severe vibration.

4. Product Characteristics

• Adapt to the national power grid construction demand of 24kV voltage level, solve the problems of high power supply voltage and high line loss in rural power grids;
• Miniaturized design, maintenance-free and intelligent, easy to install and operate in outdoor occasions;
• Environmentally friendly and pollution-free, no impact on the surrounding environment during operation;
• Complies with national and industry technical standards, with high reliability and stable performance.

5. Main Technical Parameters

6. Appearance and Installation Dimensions

Main Structure Parts:

• 1. Upper outlet wire
• 6. Binding post
• 11. Mechanism output shaft
• 2. Arc extinguishing chamber
• 7. Insulation pull rod
• 12. Voltage transformer
• 3. Insulator
• 8. Torsion spring
• 13. Mechanism box
• 4. Lower outlet wire
• 9. Separation brake spring
• 14. Current transformer
• 5. Conductive clip
• 10. Drive connecting plate

Operation Parts:

• 1. Operating handle
• 6. Connecting plug
• 11. Terminal block (incoming line end)
• 2. Isolating switch
• 7. Insulator
• 12. Isolating switch blade
• 3. Circuit breaker manual closing handle
• 8. Insulator
• 13. Terminal block (outgoing line end)
• 4. Circuit breaker manual opening handle
• 9. Closing and opening button
• 14. Circuit breaker
• 5. Closing and opening button
• 10. Insulation rod

7. Ordering Notes

When placing an order for the ZW32-24(FG) outdoor high-voltage vacuum circuit breaker, please provide the following information to ensure that the product meets the actual use requirements:

• Exact product model and specification (including rated current, rated short-circuit breaking current, etc.)
• Special requirements for operating environment (if any, such as high altitude, severe pollution, etc.)
• Special technical requirements (such as intelligent functions, accessory configuration, etc.)
• Installation and use requirements (if any)
