Landscape-type Substation Product Introduction

1. Product Brief Introduction

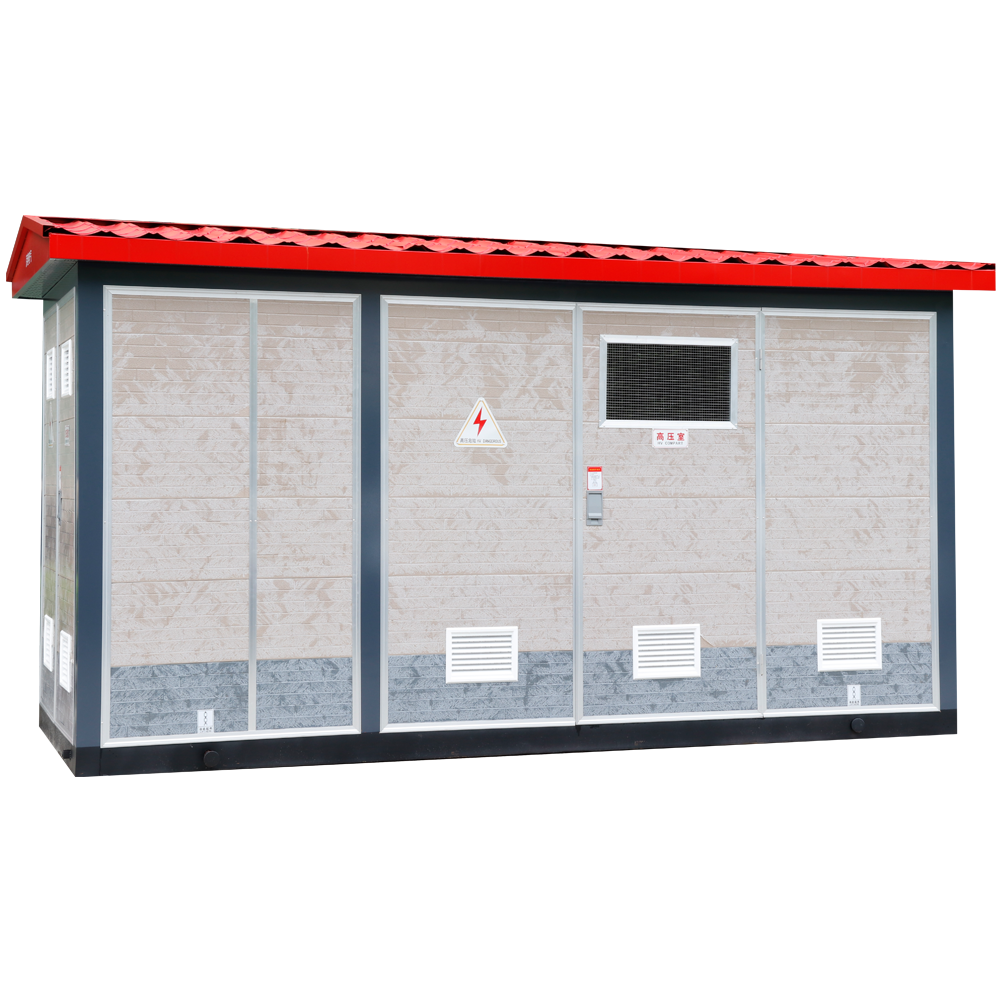

The landscape-type substation is an integrated prefabricated complete set of power distribution equipment combining power distribution functions with environmental aesthetics. Taking the simulated landscape box as the carrier, it integrates transformers, high and low voltage switchgears, protection & measurement & control devices, metering & compensation and other core components. On the basis of meeting the conventional functions of power distribution, grid connection and protection, it achieves seamless integration with the surrounding residential, municipal, commercial and residential environments through customized modeling, color matching, material imitation and other designs of the landscape box body, replacing traditional box-type substations with high reliability, aesthetics and environmental compatibility, solving the problem of inconsistency between urban power distribution equipment and landscape environment, and is a special equipment combining urban refined power distribution with landscape construction.

2. Scope of Application

• Municipal landscape scenarios: Power distribution in landscape areas such as urban parks, municipal greenways, riverside landscape belts, urban squares and street gardens.
• Residential and living scenarios: Power distribution in high-end residential quarters, villa areas, outdoor areas of commercial complexes, commercial streets and supporting power distribution of cultural tourism towns.
• Public building scenarios: Greening power distribution in public building areas such as libraries, sports parks, campsites and rural tourist demonstration sites.
• Transportation hub scenarios: Greening power distribution in transportation hubs such as highway service areas, high-speed rail station squares and airport landscape belts.
• Urban road scenarios: Supporting power distribution for roads around urban trunk road green belts, secondary trunk road landscape nodes and bus stations.
• Voltage level configuration: 10kV incoming line, 0.4kV outgoing line, covering small and medium capacity demands from 100kVA to 1250kVA, adapting to urban medium and low voltage power distribution networks.

3. Model Definition (Industry Universal Compilation Rules, Exclusive to 10kV Landscape-type Substations)

The model number of landscape-type substation is compiled by conventional substation code + landscape characteristic code + voltage level + transformer capacity + shape extension code. The core model such as YBM-JG-12/0.4-630-F, the definition of each part is in line with landscape customization characteristics with high identification, specifically:

• YBM: General code for prefabricated box-type substation (Y - Prefabricated, B - Substation, M - Sealed type, suitable for outdoor landscape environment)
• JG/12: Landscape-specific characteristic code + rated voltage (JG - Landscape type, 12 - 10kV urban distribution network mainstream), 0.4kV for low voltage side (distinguished from conventional substations)
• 630: Rated capacity of main transformer, unit kVA, common specifications for landscape-type are 100/200/315/400/630/800/1250kVA
• Shape extension code: F - Imitation wood shape, H - Flower box shape, T - Pavilion shape, Y - Rock shape, P - Mural shape, marking specific landscape design types

4. Main Technical Parameters

4.1 High Voltage Side (10kV Urban Distribution Network Standard)

• Rated Voltage: 12kV (phase voltage 6.9kV)
• Rated Current: 200A/400A/630A
• Rated Short-circuit Breaking Current: 12.5kA/16kA (adapting to urban distribution network short-circuit characteristics)
• Switch Type: Load switch-fuse combination (small capacity) / vacuum circuit breaker (large capacity)
• Grounding Mode: Neutral ungrounded (10kV urban distribution network standard)
• Protection Configuration: Class II Surge Protective Device (SPD), five-prevention interlock for high voltage side, anti-misoperation
• Protection Grade: IP33 for high voltage chamber (considering ventilation and dust prevention)

4.2 Transformer Part (Special for Urban Landscape Distribution Network, Small Capacity Energy-saving Type)

• Type: Dry-type SCB15/SCB16 (mainstream, oil-free, fireproof, low noise, suitable for crowded landscape/residential areas), small capacity optional core-type transformer (lower loss, lower noise)
• Rated Capacity: 100kVA-1250kVA (core specifications for landscape distribution network, customized on demand)
• Impedance Voltage: 4%~6% (10kV side), adapting to light load and low fluctuation characteristics of urban distribution network
• Connection Group: Dyn11 (urban distribution network standard, adapting to unbalanced load)
• Insulation Level: Class F (temperature rise limit 100K), low loss, long service life
• Noise Level: ≤45dB (1m away from box body), ultra-quiet design, adapting to quiet scenes such as parks and residential quarters

4.3 Low Voltage Side (0.4kV Low Voltage Power Distribution / Grid Connection)

• Rated Voltage: 400V/230V (line voltage/phase voltage)
• Rated Current: 400A/630A/800A/1250A
• Rated Short-circuit Withstand Capacity: 30kA/50kA (adapting to urban low voltage distribution network)
• Reactive Power Compensation: Static/dynamic compensation, compensation capacity 5-50kvar, power factor compensated to ≥0.95 (meeting urban electricity use specifications)
• Outgoing Circuits: 2-12 circuits (customizable, adapting to decentralized power factor compensation demand of landscape areas)
• Metering Function: Standard configured national network certified multi-function energy meter, supporting forward/reverse metering and data remote transmission
• Protection Grade: IP43 for low voltage chamber (waterproof, anti-external object intrusion)

4.4 Landscape Box and Intelligent Parameters

• Box Material: Outer layer is anti-corrosion landscape shaping layer (wood plastic, glass fiber reinforced plastic, simulated stone, etc.), inner layer is cold-rolled steel plate (rust-proof, pressure-resistant)
• Intelligent Measurement & Control: Real-time monitoring of voltage, current, power, electric energy, transformer temperature and box humidity
• Communication Function: RS485/Modbus/4G IoT module, supporting connection with urban distribution network dispatching and property monitoring platforms
• Auxiliary Functions: Standard configured box dehumidification, ventilation and anti-condensation devices, over-temperature alarm and remote fault prompt

5. Working Conditions

5.1 Environmental Conditions (Adapting to Outdoor Landscape / Dense Residential Areas Characteristics)

• Ambient Temperature: -25℃~+40℃ (conventional landscape type), customizable to -35℃ for high cold type
• Relative Humidity: ≤90% (at 25℃), no continuous condensation (standard configured dehumidification device to prevent landscape shaping layer deformation and internal short circuit)
• Altitude: ≤1000m (urban distribution network mainstream), customizable derating for altitude >1000m
• Installation Environment: No strong corrosive gas, no severe vibration, no flammable and explosive medium; away from water areas and heavy vehicle rolling areas, adapting to soft/hardened ground such as park greening, residential lawn and road green belts
• Noise Requirement: Operating noise ≤45dB, complying with environmental noise standards for urban residential areas and parks

5.2 Electrical Working Conditions (In Line with Urban Distribution Network Specifications)

• Power Frequency: 50Hz±2Hz
• Voltage Fluctuation: ±10% for high voltage side, ±7% for low voltage side, withstanding small voltage fluctuations of urban distribution network
• Load Characteristics: Adapting to resistive/inductive mixed loads of urban landscape lighting, residential living and public facilities, supporting intermittent operation (such as night lighting in scenic areas and park lighting)
• Installation Method: Outdoor floor installation (concrete foundation/anti-corrosion support), foundation flush with/ higher than ground, adapting to landscape area ground design, installation site flatness ≤5mm/m
• Execution Standards: In line with GB/T 17467-2019 "Prefabricated Substations", "Technical Guidelines for Urban Distribution Network Planning" and "Environmental Noise Limits"

6. Performance Characteristics

• Landscape integration, aesthetic customization: The box supports multiple shaping types such as imitation wood, flower box, pavilion and rock, with colors matching the surrounding vegetation, buildings and landscape node styles. The outer layer adopts environmentally friendly imitation materials, combining decoration and durability to realize the "invisibility of power distribution equipment" and achieve "integration of landscape and electricity".
• Ultra-quiet operation, adapting to dense areas: Adopting low-noise energy-saving dry-type transformer, combined with shock absorption and noise reduction design, operating noise ≤45dB, no oil mist and no peculiar smell, fully adapting to crowded and noise-sensitive scenes such as residential quarters, parks and commercial streets without affecting the surrounding environment.
• Integrated assembly, easy installation: All power distribution, protection and metering components are pre-assembled and debugged in the factory. The landscape box and power distribution core are integrated into one type. On-site only needs to complete foundation pouring and incoming/outgoing line connection, with an installation period of 3-5 days, no extra construction and no damage to the surrounding original landscape.
• Safe and reliable, adapting to urban distribution network: Core components adopt energy-saving products special for urban distribution network, with five-prevention interlock on high voltage side, over/under voltage/short circuit/over temperature protection on high and low voltage sides. Dry-type transformers are oil-free, adapting to areas with high fire protection requirements such as residential quarters and parks, with low failure rate, meeting the continuous and reliable power supply demand of urban distribution network.
• Environmental protection and durability, easy maintenance: The outer landscape material adopts anti-corrosion, anti-ultraviolet and anti-aging environmental protection materials, withstanding wind, rain, temperature difference changes and 15-year service life; the power distribution area is independently sealed, with reserved maintenance doors and operation space, no need to disassemble the landscape shaping layer for daily inspection and maintenance.
• Small capacity and multiple specifications, adapting to refined power distribution: Transformer capacity covers 100kVA-1250kVA, outgoing circuits can be customized flexibly, adapting to refined power distribution demands such as urban landscape lighting, residential household power distribution and public facility power supply, perfectly matching the small capacity and multi-node characteristics of urban medium and low voltage distribution networks.
• Intelligent operation and maintenance, adapting to urban smart management: Standard configured intelligent measurement & control and IoT modules, real-time monitoring of equipment operation status and internal box environment, automatic alarm and remote data upload, supporting connection with urban smart grid and property smart management platforms, realizing remote monitoring and unmanned on-duty, adapting to urban refined power distribution management needs.
• Complete protection, strong environmental adaptability: IP33/IP43 protection grade for high/low voltage chambers, considering ventilation, dust prevention, waterproof, anti-corrosion and anti-condensation devices, preventing internal component damage from outdoor temperature difference, rainwater and sand, withstanding natural environment such as outdoor temperature difference, rainwater and sand, no maintenance required.
